Project 4 - 3D Printer Scheduler

Please review the general instructions for assignments.

The goals of this project are:

Overview

Consider what happens when you have a large number of jobs to accomplish, but you cannot simply run them all at once simultaneously: downloading lots of large files, sending models to a 3D-printer, rendering lots of frames for a movie, processing credit card payments, etc. To manage a large amount of work, you need a job scheduler which will accept submissions, arrange for them to execute, and report back information to ther user.

3D Printer Simulator

In this project, you will build a job scheduler for a studio full of 3D printers. Such printers (as well as industrial CNC machines) take input in the form of G-Code, a sequence of three dimensional drawing instructions that looks like this:

G00 X246.00 Y250.00
G02 X254.00 Y250.00 I250.00 J250.00
G02 X246.00 Y250.00 I250.00 J250.00
G01 X262.75 Y250.00
G01 X262.75 Y472.63
G00 X258.75 Y472.63
. . .

Briefly, G00 indicates a fast repositioning move to an X Y position, G01 indicates a linear movement at a standard feed rate, and G02 indicates a circular arc. There are many more codes, and you can read more here.

So that you don’t have to carry around a bunch of printers, we will give you a simulator gcode2png that reads simplified G-code and produces an image file, instead of a printed object. We have deliberately slowed down the rendering code so that the printing takes some time to complete. Your job is to build a scheduler that will keep several printers busy at once.

Software Installation

To get started with this project, you will need to make a custom software environment.

First, download this starter code respository:

git clone https://github.com/dthain/opsys-sp25-project4-starter
cd opsys-sp25-project4-starter

Next create a conda environment called opsys-project4 to contain the various software dependencies. conda allows you to install a wide variety of software without root privileges, and maintain separate environments for different projects.

You may have installed conda in a prior class. Check to see if this command already works:

conda list

If that doesn’t work, then install conda into your home directory from miniforge like this:

curl -L -O "https://github.com/conda-forge/miniforge/releases/latest/download/Miniforge3-Linux-x86_64.sh"
bash Miniforge3-Linux-x86_64.sh

Then, create an environment called opsys-project4 and enter into it:

conda create -n opsys-project4
conda activate opsys-project4
conda install -c conda-forge povray

You only need to do the above steps once to get started. If you are returning to your work later, you just need to re-activate the software environment and enter the proper directory:

conda activate opsys-project4
cd opsys-sp25-project4-starter

Now check that you can run a single print job like this:

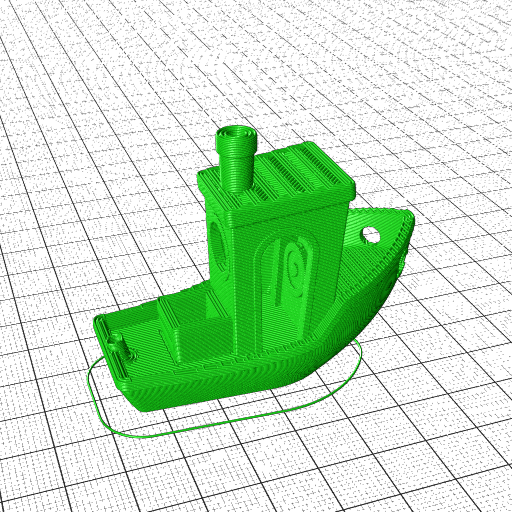

./gcode2png examples/3DBenchy.gcode --output=3DBenchy.png

Which should give you this:

The Printer Scheduler

Your goal is to build a program called printsched for managing multiple 3D printers. When started, it should accept a fixed number of printers to simulate as a command line argument. Then, it should print out a prompt and wait for input from the user. The available commands should be:

submit      <file.gcode> <file.png>
list
wait        <jobid>
waitany
waitall
remove      <jobid>
setpriority <jobid> <priority>
schedule    <fifo|sjf|priority|balanced>
quit
help

The submit command defines a new print job, names the gcode file to execute on the printer, and the name of the intended output file. submit should return immediately and display a unique integer job ID generated internally by your program. (Just start at one and count up.) The job will then run in the background when selected by the scheduler. Each simulated printer will pop open a window and start drawing.

The list command lists all of the jobs currently known, giving the job id, current state (WAITING, PRINTING, COMPLETE), filename, input size, output size, submit time, start time, and complete time. It should also state the average turnaround time and average response time of all jobs in the COMPLETE state. You can format this output in any way that is consistent and easy to read.

The wait command takes a specific jobid and blocks until that job is done printing. Once complete, it should display the final status of the job (success or failure) and the time at which it was submitted, began printing, and completed. (If the job was already complete, then it should just display the relevant information immediately.)

In a similar way, waitany should wait for any one job to complete, and waitall should wait for all jobs to complete.

The remove command takes a jobid and then removes it from the queue. However, a job cannot be removed if it is currently in the PRINTING state. In this case, display a suitable error and refuse to remove the job.

The setpriority command should adjust the priority of a job after submission.

The schedule command should select the scheduling algorithms to be used by the printers: fcfs is first-come-first-served, sjf is shortest-job-first, an priority should run jobs in priority order. balanced should generally prefer short and high-priority jobs, but also make some accomodation to ensure that no job is starved indefinitely.

The quit command should immediately exit the program, regardless of any jobs in the queue. (If end-of-file is detected on the input, the program should quit in the same way.)

The help command should display the available commands in a helpful manner.

Implementation Advice

This project will bring together a variety of concepts that you have studied so far: process management, thread synchronization, and job scheduling. We aren’t going to talk through every little function you should use; you will need to review prior material and look up documentation as needed.

Here is the basic architecture you should use:

The program should consists of several threads: one main thread and several printer threads, which interact through a common job queue. The main thread interacts with the user by reading commands, submitting jobs to the queue, displaying status, and so forth.

Each printer is represented by a thread that works in the background. Each thread should select the next job to run (based on the current scheduling algorithm), render the print job by running the simulator program as a separate external process, and then updating the job queue when that process is complete.

The tricky part of this assignment is the job queue itself. The job queue should be implemented as a monitor as discussed in class: a data structure that is protected by a mutex and a condition variable. The job queue should only be accessed by functions that take care to use the mutex for mutual exclusion and the condition variable to sleep and wakeup.

Generally speaking, the main thread should remain responsive to the user by only performing quick actions on the job queue. The user ought to be able to see immediate response to all commands, except those that specifically wait for a job to complete.

Testing

Test your scheduler carefully by using it to run a variety of jobs, both short and long, in different orders. Try different combinations of operations: submitting, waiting, removing, etc. Try the different scheduling algorithms, and verify that the statistics reported are correct for the jobs that actually run. Try running with different numbers of printers, and check that all are kept appropriately busy. Think critically about unexpected events, such as improper input from the user, incorrect arguments to commands, and so forth. Whenever such an unexpected event occurs, you should display a detailed and helpful error message, and (where possible) continue operation of the program.

A particularly useful way to test is to create small input files that contain a sequence of operations. For example, create test.txt containing this:

submit example.gcode example.png
list
setpriority 1 10
list
wait 1
remove 1
list
quit

Then, just run your scheduler with input redirected from that file:

./printsched 4 < test.txt

Turning In

Please review the general instructions for assignments.

Turn in the following:

Grading

Your grade will be based on:
